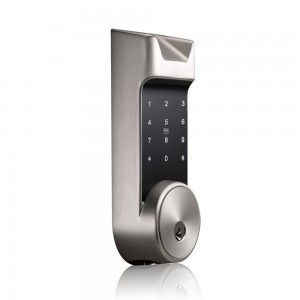

Outdoor American deadbolt RFID 13.56MHZ IC card door lock with touch screen and Bluetooth (AL30B)
Short Description:
American deadbolt, 13.56Mhz IC card, Outdoor digital lock with Bluetooth Enabled, Touch Screen, Fake PIN code, smart mobile APP
Quick Details
| Place of Origin | Shanghai, China |
| Brand Name | Granding |
| Model Number | AL30B |
| verification mode | IC card, PIN, Bluetooth, key |
| Fingerprint Sensor | No fp sensor |
| users | 100 |
| password capacity | 100 |
| logs capacity | 500 |
| power supply | 4XAA Alkaline battery |
| Material | Zinc Alloy |
| handle direction | No handle |
| mortise type | American deadbolt |
| touch keypad | Yes |
Product Description
American deadbolt, 13.56Mhz IC card, Outdoor digital lock with Bluetooth Enabled, Touch Screen, Fake PIN code, smart mobile APP
Features
1) Easy to program, support many language
2) Include high volume, low volume and silent mode
3) Unlock your door using dedicated mobile App on your smart phone
4) Random Password, Anti-pee design, enhanced code security
5) Alarm Mode: Low battery warning & Ilegal operation warning
6) No Handle Design, to fit for all door open direction.
7) Back Up Power: Emergency battery port of 9V
Specifications
| users capacity | 100 users |
| Fingerprint sensor | No sensor |
| Card Module | 13.56Mhz IC card |
| Logs capacity | 500 |
| material | Zinc Alloy |
| verification | Bluetooth app, PIN, IC card, key |
| Verification Mode: | 1:N |
| Enrolling speed: | <1S |
| Verification speed: | < 0.8S |
| FAR: | <0.0001% |
| FRR: | <0.1% |
| Power Supply Voltage: | 4XAA Alkaline battery |
| Battery life | Over 6000 times (about 1 year) |
| Touch keypad | Yes |
| Alarm | Low Battery Warning & Illeglal Operation |
| Language | English |
| Working Temperature: | -22℃ - 55℃ |
| Operation Humidity: | 20%-80% |
| Applicable Door thickness | 35-53mm (Thickness) |
| Dimension | Front - 77(W)×199(L)×43(D) mm
Back - 77(W)×199(L)×52(D) mm |
| Weight: | 2 KG |
Diagram
Packaging & Delivery.
| Selling Units | Single item |
| Single package size | 29X26X16 cm |
| Single gross weight | 3.000 kg |
Lead Time :
| Quantity(Pieces) | 1 - 500 | >500 |
| Est. Time(days) | 30 | To be negotiated |
