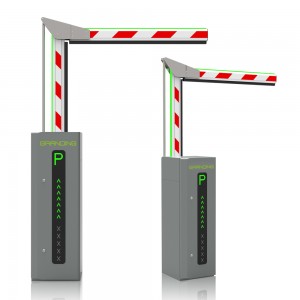

Middle To High-end Barrier Gate (ProBG3000 Series)
Short Description:
The ProBG3000 series is a high performance and high speed barrier gate. It adopts high performance servomotor, simple and reliable transmission structure, high temperature resistant control panel, humane interaction design on appearance and impact protection design on boom connector.
Quick Details
| Place of Origin | Shanghai, China |
| Brand Name | GRANDING |
| Model Number | ProBG3000 Series |
| Type | Barrier Gate |
| Warranty | One Year Warranty, Life-time support |
Introduction
The ProBG3000 series is a high performance and high speed barrier gate. It adopts high performance servomotor, simple and reliable transmission structure, high temperature resistant control panel, humane interaction design on appearance and impact protection design on boom connector.
Basic Features
Humane interaction design. Standard case is equipped with LED indicator and LED light strip is optional for the boom.
Mean Cycles Between Failure (MCBF) has reached 5 million times. Product lifespan is 10 times longer than traditional barrier gate.
Gate’s opening / closing speed are lightning-fast and can widely adjust from 0.9s-10s, depends on vehicle flow and boom length.
Good temperature resilience. Able to work under -40°C—+ 75°C outdoor.
Small abrasion, no mechanical impact and impact absorption in motion.
Boom will be automatically raised when power off, no need for manual operation.
Boom will stop or return when encounters blockage. Standard package with impact-resistance rubber strip.
Installation and boom’s direction switching are easy and can be done on site.
Support fleet mode and open recording function. Gate will close after vehicle sensor has detected specified amount of vehicle pass.
Support wide range of 100-240V DC and 24V battery.
Low power consumption and energy saving design, the barrier gate can save ~500kWh per year.
Specifications
|
Model |
ProBG3000 |
ProBG3100 |
|
Motor Type |
Servomotor |
|
|
Boom Type |
Straight boom |
90° Folding boom |
|
Boom Length |
Support 3m/4.5m/6m (Can be adjusted) |
3m
|
|
Protection Level |
IP 54 |
|
|
Operating Temperature |
-40°C~+75°C |
|
|
Power Supply |
24V DC, AC 100~240V |
|
|
Controller Frequency |
50-60Hz |
|
|
Power Consumption |
100W |
|
|
Case Material |
Powder coated steel |
|
|
Case Dimensions |
360*330*1000mm |
|
|
Weight |
48kg |
|
Note
Parking Barrier Application
|
Model |
Boom Length (meters) |
Operation Times (s) |
Boom with LED |
|
ProBG3030 L/R |
3m |
0.9s |
N |
|
ProBG3045 L/R |
4.5m |
2.5s |
N |
|
ProBG3060 L/R |
6m |
4.5s |
N |
|
ProBG3030 L/R-LED |
3m |
0.9s |
Y |
|
ProBG3045 L/R-LED |
4.5m |
2.5s |
Y |
|
ProBG3060 L/R-LED |
6m |
4.5s |
Y |
|
ProBG3130 L/R |
3m |
0.9s |
N |
|
ProBG3130 L/R -LED |
3m |
0.9s |
Y |
Packaging & Delivery
Selling Units:Single item
Single package size:360*330*1000mm
Single gross weight:48.000 kg
Package Type:360*330*1000mm/Weight: 48.0KG
