Intelligent Fingerprint Lock with OLED display and USB interface( L9000 )
Short Description:
L9000/Fingerprint Door Lock with OLED Display and USB Port
Quick Details
| Place of Origin | Shanghai, China |
| Brand Name | Granding |
| Model Number | L9000 |
| Lock Material | Zinc Alloy |
| Unlock Mode | Fingerprint,Password, Password+Fingerprint,Card, Mechanical key |
| Speaker | LCD with Voice Prompt |
| Keypad | Finger Touch |
| Fingerprint Sensor | Semi Conductor |
| Fingerprint Capacity | 500 |
| Transaction Capacity | 30,000 events |
| Password Capacity | 100 |
| Supply Ability | 100 Piece/Pieces per Week |
Product Description
L9000/Fingerprint Door Lock with OLED Display and USB Port
Features
Elegant, durable and secure Zinc Alloy die-casting;
Match Way: 1:N; 1:1; password lenth: 6-10 digit;
OLED display, with 500DPI resolution;
Support offline view of locking records
Multiple ways to unlock door
Can set the fingerprint lock to be Normally Open (NO) state in special time.
Can display the battery charge level, low battery voltage warning
Power supply: 4 AA alkaline batteries
Multi-language supported
Different color Finish selectable
Specifications
| Technical Specifications Capacity | Environment |
| Fingerprint capacity: 500 Passward: 100 | Operation temperature: 0°C ~ 45°C |
| Log capacity: 30,000 | Operation humidity: 20% ~ 80% |
| Identification | Unlock Mode |
| Identification speed(1:N): ≤1s | Fingerprint, PIN or Mechanical key, |
| Finish panel color | Handle direction |
| Red Bronze, Bronze, Bright chrome can be selectable | Right and left handle |
| Communication | Gross weight |
| USB Flash disk | 5.0KG |
| Power Supply | Machine Size |
| Four AA standard alkaline batteries, low battery warning:≤4.8V | 310(L)*72(W)*38.5(H)mm |

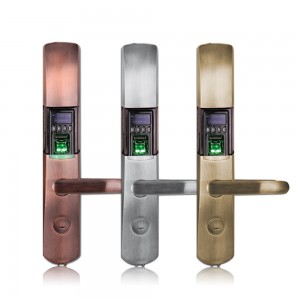

Detailed Images : Different Colors
Sketch Diagram
Packaging & Delivery.
| Pakage date | |
| Lock size | 310*72*38.5mm(L*W*T) |
| Weight | 5.0kg |
| Port | Shanghai |
Lead Time :
| Quantity(Pieces) | 1 - 50 | 51 - 300 | >300 |
| Est. Time(days) | 15 | 30 | To be negotiated |
