Compact Size Biometric Fingerprint Door Access Control System With Touch Screen (F04)
Short Description:
The Fingerprint Card Punching Door Access Control System for door control Access system , F09+MF, is a professional access control product with MF 13.56MHz smart card integrated made by Granding Technology, combined such as fingerprint recognition algorithm, optical sensors, embedded design technology, and software application, etc.. F09 gets maximum security and maximum value to the customers, it is NEW developed popular Granding device. Verification ways are fingerprint, card , password/pincode, or the combination, we call it multi-verification way.
Quick Details
| Place of Origin | Shanghai, China |
| Brand Name | GRANDING |
| Model Number | F09+MF |
| Fingerprint Sensor | Optical Sensor |
| Display | 2.4 Inches TFT Screen |
| Communication | TCP/IP, RS232/485, USB Host, Wiegand in/out |
| Warranty | Two Years |
Brief Introduction
F04 is 2.8 Inch Touch Screen Fingerprint Door Access Control for door control system with optional RFID Card Reader , F04, is a professional access control product with ID card integrated made by Granding Technology, combined such as fingerprint recognition algorithm, optical sensors, embedded design technology, and software application, etc.. F04 gets maximum security and maximum value to the customers, it is NEW developed popular Granding device. Verification ways are fingerprint, card , password/pincode, or the combination, we call it multi-verification way. F04 the small size design makes it popular in market.
Product Features
♦ 2.8- inch touch screen, color display with graphical UI for easy operation.
♦ Voice prompt for acceptance and rejection of valid/ invalid fingers.
♦ Compact and Lightweight, small size for 86*86mm socket installation.
♦ TCP/IP or Rs485 communication for various networking environments.
♦ Supports USB flash drive for offline data management.
♦ Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
Specification
| LCD Display | Access control Interface |
| 2.8 inch restive touch Screen | Electric lock, Door sensor, Alarm, Exit button, Door bell |
| Fingerprint Sensor: optical Sensor (500DPI) | |
| Capacity | Environment |
| Fingerprint:1,500 | Operation temperature:0℃~45℃ |
| Card:5,000 (EM/MF) Records:80,000 | Operation humidfity:20%~80% |
| Communication | Power Supply |
| TCP/IP, RS485, USB Host, Wiegand in/out | DC12V/3A(optional) |
| Algorithm Version | Aux. Input |
| Finger VX10.0 | 1ea for linkage function |
| Dimension(W*H*L) | |
| 105*105*34mm |
Connection Diagram

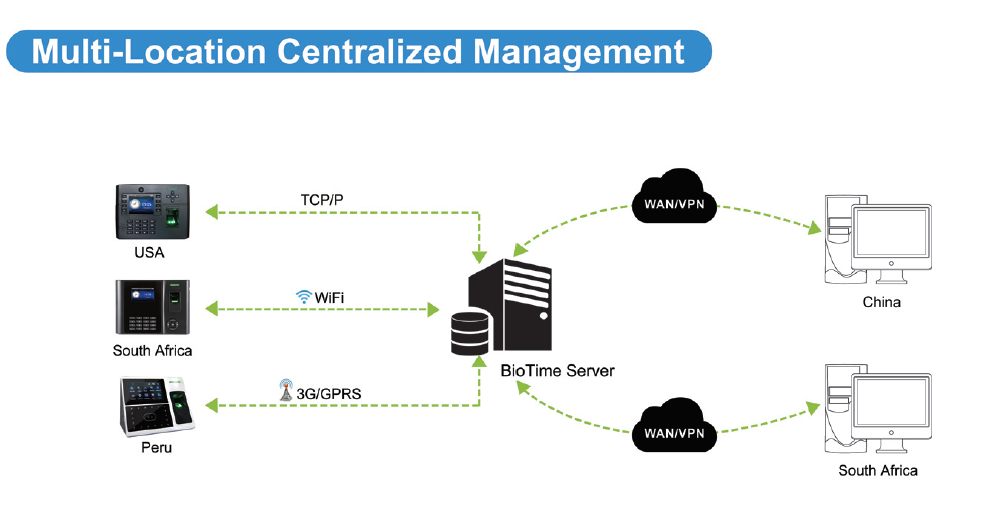

Icloud Web-based Attendance Software For Collecting Data to Server Center
Packaging & Delivery
| Selling Units | Single item |
| Single package size | 20X20X10 cm |
| Single gross weight | 1.000 kg |
| Package Type | Machine size:105 x 105 x 32mm |
Lead Time :
| Quantity(Units) | 1 - 10 | 11 - 50 | 51 - 200 | >200 |
| Est. Time(days) | 1 | 3 | 7 | To be negotiated |
FAQ
1. Q: Do you have any MOQ limit?
A: We have no MOQ limit. MOQ of all our products is 1pc. You can buy one unit to test and make evaluation!
2. Q: What is your product warranty?
A: Every product we sell is with two-year-warranty, during the warranty period, we provide free maintenance and support. What’s more we offer a life-time free technical support for all products.
3. Q: Does the device’s language can be other language?
A: Yes, of course. Multi-language can be customized.
If there still any problems, please don’t hesitate to contact us:
4. Q: What about the Payment?
A: You can pay for the order via: Bank T/T, Western Union, Paypal, Credit Card.
5. Q: How do you ship the goods?
A: We usually ship by DHL, UPS, FedEx or TNT. You can choose shipping way by sea or by normal air service for big quantity order.
Welcome your order ! Any question, please feel free to contact us!
