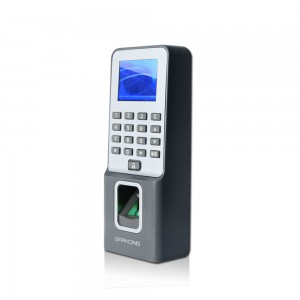

Biometric Fingerprint MF 13.56MHz Smart Card Punching Door Access Control System with Attendance Machine (F09)
Short Description:
The Fingerprint Card Punching Door Access Control System for door control Access system , F09+MF, is a professional access control product with MF 13.56MHz smart card integrated made by Granding Technology, combined such as fingerprint recognition algorithm, optical sensors, embedded design technology, and software application, etc.. F09 gets maximum security and maximum value to the customers, it is NEW developed popular Granding device. Verification ways are fingerprint, card , password/pincode, or the combination, we call it multi-verification way.
Quick Details
| Place of Origin | Shanghai, China |
| Brand Name | GRANDING |
| Model Number | F09+MF |
| Fingerprint Sensor | Optical Sensor |
| Display | 2.4 Inches TFT Screen |
| Communication | TCP/IP, RS232/485, USB Host, Wiegand in/out |
| Warranty | Two Years |
Introduction
The Fingerprint Card Punching Door Access Control System for door control Access system , F09+MF, is a professional access control product with MF 13.56MHz smart card integrated made by Granding Technology, combined such as fingerprint recognition algorithm, optical sensors, embedded design technology, and software application, etc.. F09 gets maximum security and maximum value to the customers, it is NEW developed popular Granding device. Verification ways are fingerprint, card , password/pincode, or the combination, we call it multi-verification way.
Product Features
♦ Composite algorithm system with high speed operating
♦ Embedded LINUX system, easy to integrate into various system
♦ Standalone or network environment
♦ Professional access control system support real-time entrance logs transferring
♦ Web server application for online solution
♦ 24 hours continuous operation available
♦ Wired doorbell connection supported
Specification
| Display/Speaker | Language |
| LCD Display: 2.4 High-definition Graphical Interface | Multi Language, English, French, Spanish, Arabic, etc., for more than 40 languages are optional. |
| Speaker: Voice Prompt (Languages can be selected) | |
| Capacity | Environment |
| Fingerprint Capacity: 4,000 , Card Capacity: 5,000 | Operating Temperature: 0°C ~ 45°C |
| Log Capacity: 100,000 | Operating Humidity: 20% ~ 80% |
| Verification/Identification | Verification/Identification |
| Verification Speed(1:1): ≤0.5s | FRR: ≤0.01% |
| Identification Speed(1:N): ≤1s | FAR: ≤0.0001% |
| Power Supply | Machine Dimension |
| Power: 110/220VAC ~ 12VDC (PS-3A is optional) | 185(L)*75(W)*40(H)mm |
| Communication | Attendance Status |
| TCP/IP, RS232/485, USB Host, Wiegand in/out | Check in, Check out, break in, break out, OT in, OT out |
| Standard Functions | Custom Functions |
| Professional access control, built-in relay, 50 time zones, 5 groups and 10 combinations; Dismantlement alarm, break-in alarm, duress alarm; DST; Scheduled bell, SMS, Web server, Photo-ID, Auto status, Anti-pass back, Wired doorbell connection | 9-pin ID, Multi-verify, ID Card reader(already integrated), MIFARE card reader |
Connection Diagram
Software Management
We have Web based BioTime8.0 Icloud Based Software, and we also have PC-based attendance software.
Packing List
Packaging & Delivery
| Selling Units | Single item |
| Single package size | 30X20X10 cm |
| Single gross weight | 1.5 kg |
| Package Type | Machine size:185(L)*75(W)*40(H)mm |
Lead Time :
| Quantity(Units) | 1 - 10 | 11 - 50 | 51 - 200 | >200 |
| Est. Time(days) | 1 | 3 | 7 | To be negotiated |
FAQ
1. Q: Do you have any MOQ limit?
A: We have no MOQ limit. MOQ of all our products is 1pc. You can buy one unit to test and make evaluation!
2. Q: What is your product warranty?
A: Every product we sell is with two-year-warranty, during the warranty period, we provide free maintenance and support. What’s more we offer a life-time free technical support for all products.
3. Q: Does the device’s language can be other language?
A: Yes, of course. Multi-language can be customized.
If there still any problems, please don’t hesitate to contact us:
4. Q: What about the Payment?
A: You can pay for the order via: Bank T/T, Western Union, Paypal, Credit Card.
5. Q: How do you ship the goods?
A: We usually ship by DHL, UPS, FedEx or TNT. You can choose shipping way by sea or by normal air service for big quantity order.
Welcome your order ! Any question, please feel free to contact us!
