2019 High quality X-Ray Inspection System – Single Energy X-ray Inspection System (ZKX5030A) – Granding

Short Description:


Product Detail

Product Tags

Related Video

Feedback (2)

Our pursuit and company goal is to "Always satisfy our customer requirements". We continue to develop and design superior quality products for both our old and new customers and achieve a win-win prospect for our clients as well as us for Boom Gate , Gate Boom Barrier , Access Control With Body Temperature Screening , For more info, be sure to call us as shortly as possible!
2019 High quality X-Ray Inspection System – Single Energy X-ray Inspection System (ZKX5030A) – Granding Detail:

Quick Details


Place of Origin Shanghai, China
Brand Name GRANDING
Model Number ZKX5030A
Type Single Energy X-ray Inspection System

Brief Introduction

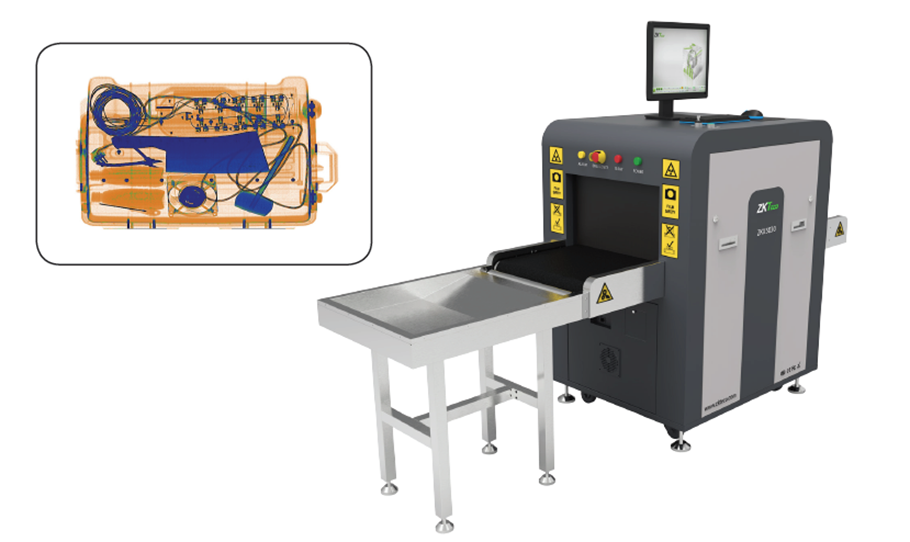

ZKX5030A X-ray inspection system increases the operator’s ability to identify potential threats; the device is designed to scan briefcases, carry-on baggage, small cargo parcels.
ZKX5030A uses reliable high quality X-ray generator. With the superb image algorithm, ZKX5030A could offer clear scanning image, which allows operators to identify potential threat items visually.
With ergonomic modern design, ZKX5030A could help operators to identify suspicious items fast and accurately.

* Kindly note: ZKX5030A equipped with a computer keyboard
Highlights


Offer higher Wire Resolution with
HAMAMATSU® X-ray detector
Pseudo-color scanning image
Widely usable for small parcels
Excellent, ergonomic industrial design
STANDARD


Energy Saving Mode
OPTIONAL FEATURES


Bidirection scan
Fingerprint Console Board
Console Desk
Specification


Tunnel Size W507mm × H305mm
Speed 0.20 m/s
Height of Transmission Belt 730 mm
Maximum Load ≤120 Kg (Adequate distribution)
Wire Resolution 34 AWG (0.16mm metal wire)
Space Definition Horizontal Φ1.0mm Vertical Φ2.0mm
Penetrate Definition 32 AWG
Penetration 8mm Steel board
Monitor 17 inch LED
System Function High density alarm, TIP, Luggage counter, System running timer, X-ray emitting timer, System maintainance, Training, 64 times continuous zoom in
Film Safety ASA/ISO1600 standard of film safety

X-ray System


Tube Voltage 80 KV
Cooling Seal oil cooling / 100%
Single Inspection Dosage Rate ≤1.0 μ Gy
Radiation Leak Dosage 0.1μ Gy/h (5cm from the shell)

Installation Specification


Package Size L1900mm × W990mm × H1485mm
Package Weight 410 KG
Power Consumption 1 kVA
Noise 53.8 dB(A)

Dimension






FAQ


1. Q: Do you have any MOQ limit?
A: We have no MOQ limit. MOQ of all our products is 1pc. You can buy one unit to test and make evaluation!
2. Q: What is your product warranty?
A: Every product we sell is with two-year-warranty, during the warranty period, we provide free maintenance and support. What’s more we offer a life-time free technical support for all products.
3. Q: Does the device’s language can be other language?
A: Yes, of course. Multi-language can be customized.
If there still any problems, please don’t hesitate to contact us:
4. Q: What about the Payment?
A: You can pay for the order via: Bank T/T, Western Union, Paypal, Credit Card.
5. Q: How do you ship the goods?
A: We usually ship by DHL, UPS, FedEx or TNT. You can choose shipping way by sea or by normal air service for big quantity order.

Welcome your order ! Any question, please feel free to contact us!
